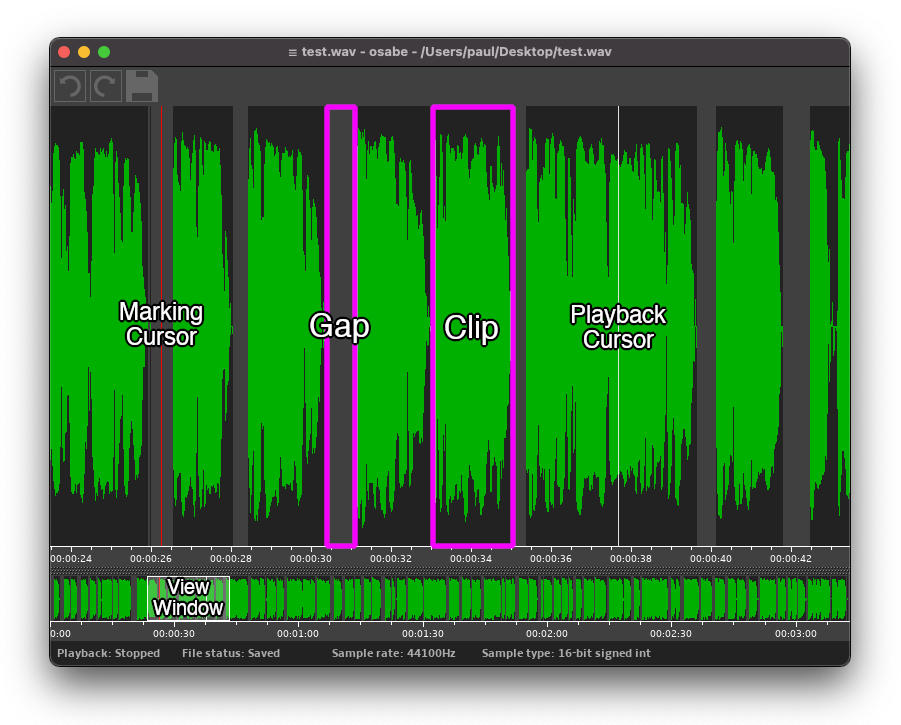

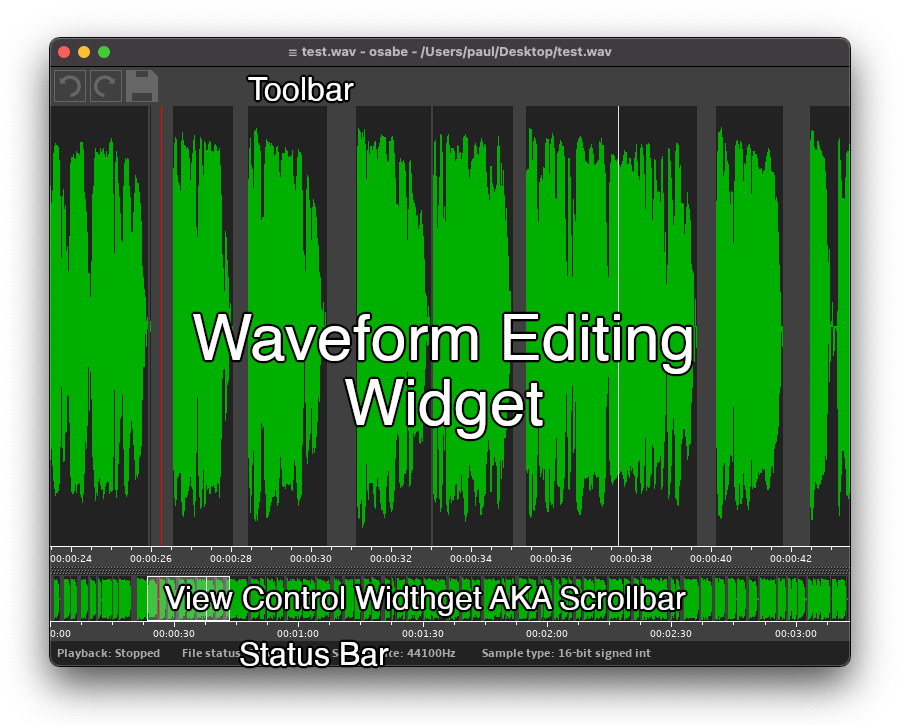

Nomenclature

This documentation refers to various objects in osabe's UI by name, and these names are as follows:


User-Interface

The tables in this section enumerate what input combinations osabe will recognize and what actions they will invoke. If at any point while you're performing an operation you wish to cancel it, press the Esc key.

Note: during audio playback an auto-scroll function will be active to automatically move the view along with the playback postion; however, pressing any of the Alt, Ctrl,  ⌘ , or Shift keys or the left or right mouse buttons will stall the auto-scroll function (though playback will continue) until released, at which point the auto-scroll function will catch the view up with the current playback position.

OS X note: the  ⌘  key can be used as a substitute for the Ctrl key, though you'll probably still want to use Ctrl when combining with the Space Bar to avoid bringing up the Spotlight search bar (unless you've disabled that input reaction).

Mouse Input ‐ Widget-Specific

In the content below, "Left" and "Right" refer to actions performed with the left or right mouse buttons, respectively.

Waveform Editing Widget
Input Target Action
Left-Click Clip Move the marking cursor to the beginning of the clip and begin playback
Gap Move the marking cursor to the cursor's position in the gap
Left-Drag N/A Pan the view
Right-Click Clip Remove the clip and the following (trailing) gap
Gap Remove all the clips and trailing gaps in the span from the marking cursor to the gap being clicked
Right-Drag N/A Remove all the clips and trailing gaps covered by the drag span
Alt + Left-Click N/A Move the marking cursor to the cursor's position and begin playback
Alt + Right-Click Clip Split the clip into two at the cursor position
Gap Truncate the gap length to cursor position
Ctrl + Left-Drag Clip Size the gap (preceding the clip)
Gap
Scroll-Wheel N/A Zoom the view in/out

View Control Widget (Scrollbar)
Input Target Action
Left-Drag View Window Pan the view
Left-Click Bar Center the view over the cursor's position in the scrollbar
Left-Drag Bar Center the view over the cursor's position in the scrollbar and continue to pan the view
Scroll-Wheel N/A Scroll the view

Keyboard Input ‐ Global Control

Playback Control
Input Playback State Action
Space Bar Playing Stop playback
Stopped Start playing from the marking cursor
Ctrl + Space Bar Playing Stop Playback
Stopped Continue playing from the last stopping point

Operation Control
Input Action
Esc Cancel operation in progress
Ctrl + Z Undo previous operation
Ctrl + Y Redo undone operation
Ctrl + Shift + Z

View Control
Input Action
Shift Stall the auto-scroll function
Home Move the view to the beginning of the waveform
Ctrl + Home Move the view and the marking cursor to the beginning of the waveform
End Move the view to the end of the waveform
Ctrl + End Move the view and the marking cursor to the end of the waveform
Page Up Move the view one view-width to the left
Page Down Move the view one view-width to the right

Note: except for saving a file, the following actions can be performed at any time while the application is running:

Application Control
Input Action
Drag & Drop a file into the application Load file
Ctrl + S Save file
Ctrl + Q Quit application
Ctrl + W Quit application (OS X only)
Alt + F4 Quit application (Windows only)
